WiFi Bluetooth Cloud Print Server | Upgrade USB Printers to Wireless LAN & Remote Printing, API & MQTT Supported

1. Product Overview

Transform USB Printers into Wireless Cloud Printers for Multi-User, Remote, and LAN/Bluetooth Printing

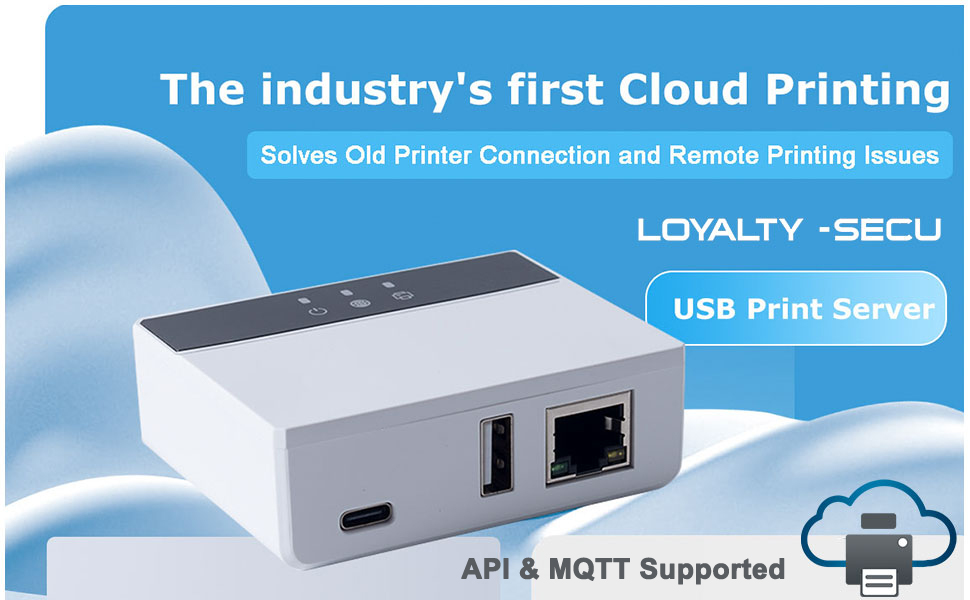

LY-CPS-WB07 is a Wireless WiFi Network USB Print Server, a portable device that allows multiple users on a wireless network to share a single printer. Users can send print jobs anytime, anywhere via computer or smartphone, and place the printer wherever convenient, free from USB cable limitations.

It also functions as a Bluetooth Printer Adapter, instantly converting a USB printer into a Bluetooth printer. Even without a network connection, print jobs can be sent via Bluetooth from computers, smartphones, or PDAs.

Equipped with stable cloud server technology, LY-CPS-WB07 supports API integration and third-party MQTT servers. It solves printer connection issues and enables true remote printing, allowing users to send print jobs to office printers from home or on business trips.

2. Compatible Devices and Use Cases

This cloud USB print server adapter provides an ideal printing solution, especially suited for home or small office environments, as well as government and educational institutions that need to collaborate across different LAN networks and rely on efficient, shared cloud printing capabilities.

• Compatible Devices: Supports inkjet printers, laser printers, label printers, thermal printers, dot matrix printers, and multifunction printers.
• Use Cases: Home offices, schools, logistics centers, e-commerce, enterprises, and more.

3.Wi-Fi Bluetooth Cloud Print Server Main Features

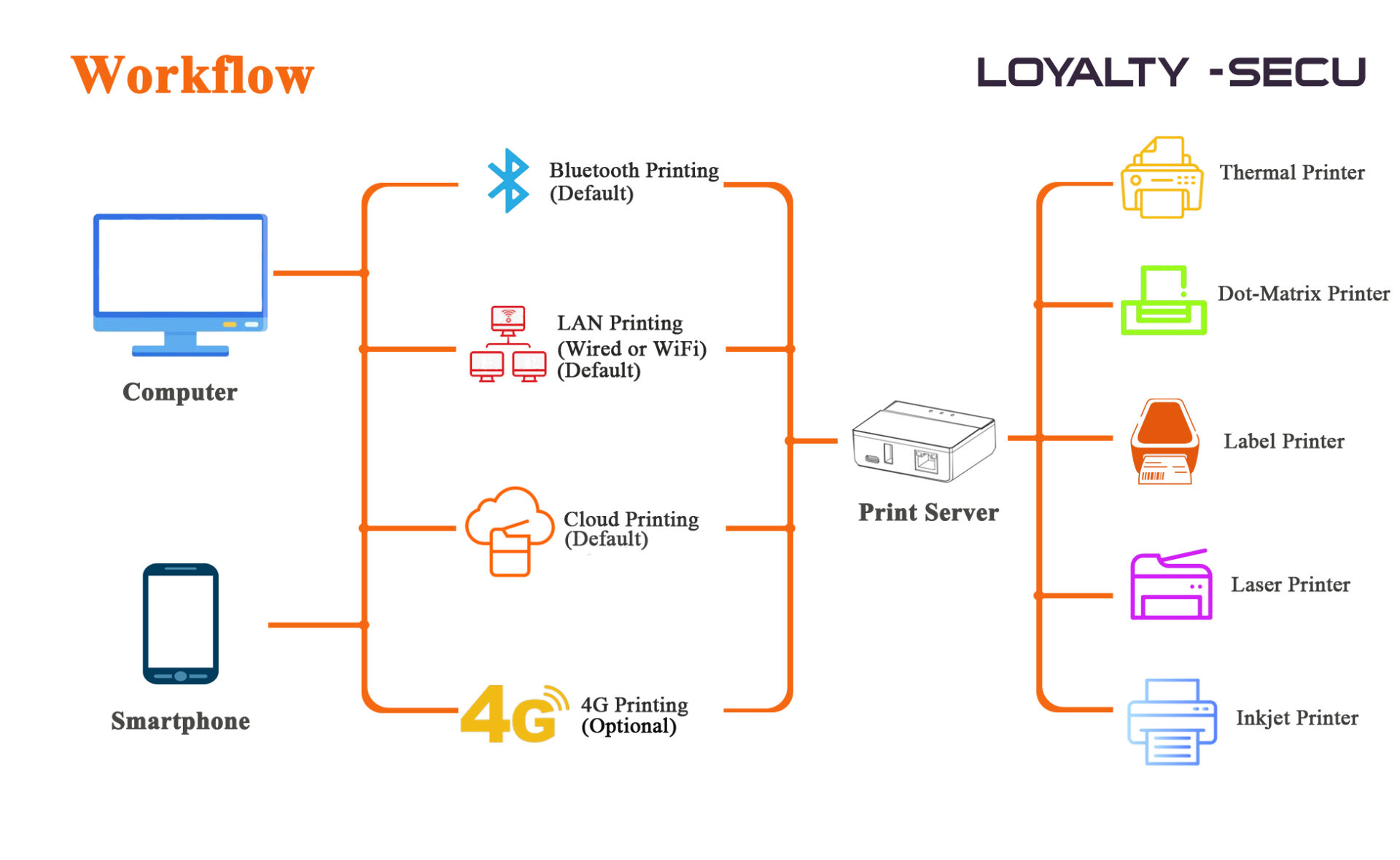

1.Revitalize Old USB Printers: Instantly transform any USB printer into a wireless printer. Supports four connection methods—Wired, WiFi, Bluetooth, and Cloud—for seamless printing without cables.

2.Industrial-Grade Performance: Powered by an ARM A7 1.2GHz CPU, supporting CUPS and IPP protocols, it delivers fast, stable, and highly compatible printing. Enhanced heat dissipation ensures consistent performance and extended device lifespan.

3.Cloud & Remote Printing: Print from anywhere using your phone, tablet, or computer. Connect the server to your office printer and send documents from home or on business trips, enabling true remote printing.

4.Versatile Printing Options: Dual-band WiFi (2.4GHz & 5GHz), dual-mode Bluetooth (SPP + BLE), wired network, and cloud printing support allow flexible printing from smartphones and computers simultaneously.

5.API & MQTT Integration: Works with third-party MQTT servers and supports custom private cloud solutions for reliable enterprise cloud printing.

6.Quick & Simple Setup: Lite APP and professional PC Cloud CMS simplify installation and configuration. Power and setup via Type-C cable. Compatible with Windows, Mac OS, Linux, Android, and Harmony OS.

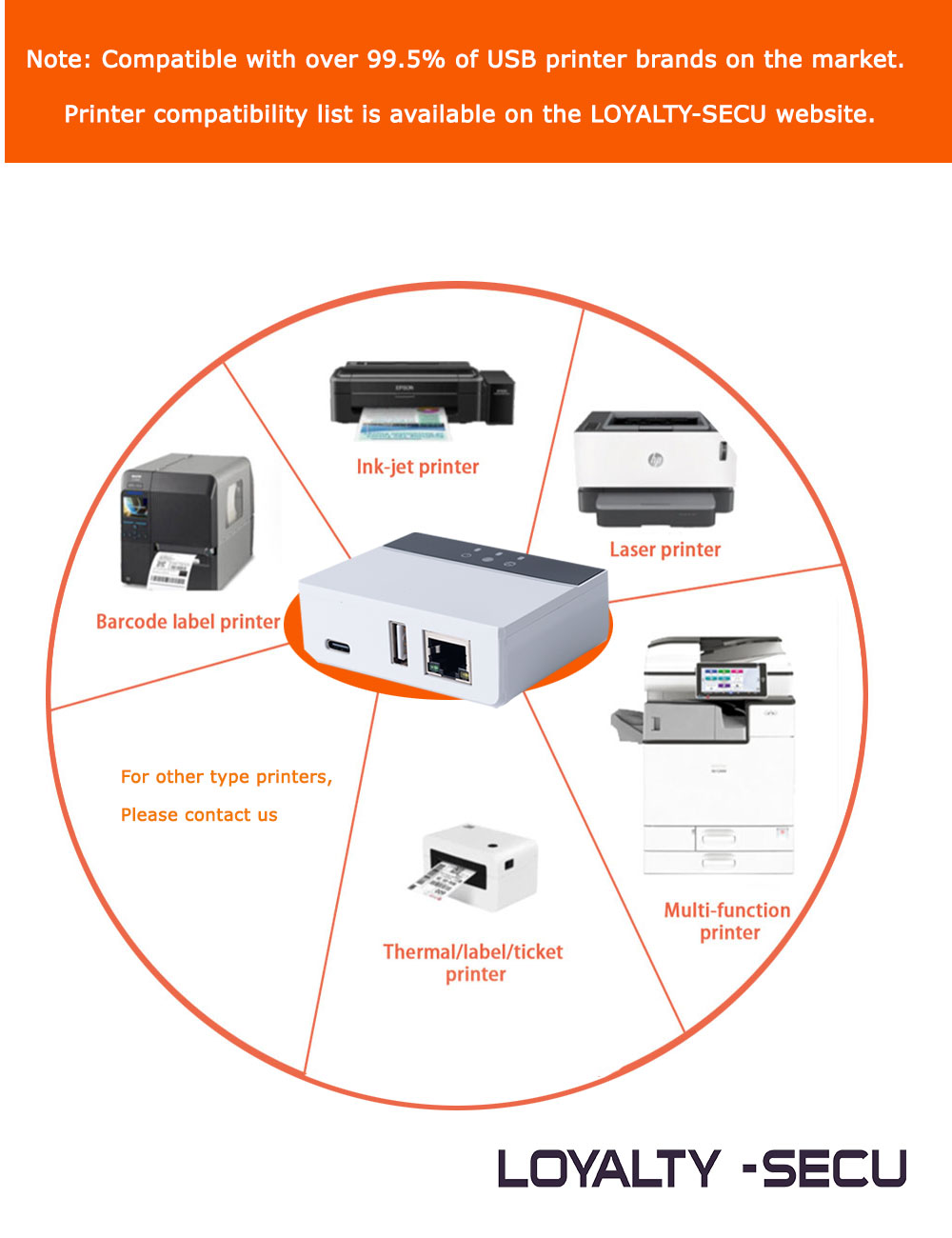

7.Wide Compatibility: Works with over 99.5% of printer models, including inkjet, laser, label/barcode, dot matrix, thermal/receipt, and MFP printers. Supports multiple file formats—PDF, Word, Excel, PPT, images, etc.

8.Flexible Connectivity: Offers wired, WiFi, Bluetooth, and cloud server connections to suit any network environment.

9.Compact & Cost-Efficient: Lightweight (57.3g) and portable (74×58×25mm), easy to integrate into any workspace. Reduces the need for extra printers or servers, lowering operational costs.

10.Multi-User Sharing: Share printers effortlessly across multiple devices and users, ideal for homes, offices, schools, and government institutions requiring shared printing capabilities.

4.VERY IMPORTANT

1.For LOYALTY-SECU Print Server Products, we recommend to the users who know little bit network setting.

2.LOYALTY-SECU Provide the technical remote-control service via TeamViewer or AnyDesk for Print Server Quick Configuration.

3.Before using the print function, please download the Print Server Configuration APP, PC Print Assistant and User Manual from our business site.

5.Workable Printer Types:

Inkjet Printers,Label Printer, Barcode Printer, Impact Printer (Dot Matrix Printing),Thermal Label or Receipt Printer, Laser Printer, Multifunction Printer (MFP), and so on.

6.Product Package Items:

1PCS* USB Print Server

1PCS* 5V/1 Power Adapter

1PCS* User Manual

7.LOYALTY-SECU Print Servers Unsupported USB Printer Models

Canon:
Canon LBP Series Printers:
For Example : 2900/3000/3010/3018/3050/3100/3200/3210/3250//3300/3310//3410/6000/6200/6230/6300/7010/
7100/7200/7680/8780 etc.

EPSON:
EPSON R Series Printers:
For Example : Epson Stylus Photo R200/220/330/260/280/300/300M/320/330/340/380/800/R1800/1900/R2000/R2400/R2880/R3000, etc.
Epson Stylus Series Printers:
For Example: 300/400/800/800+/1000/1500, etc.
Epson Stylus Color Series: 880/880i/900/900G/900N/980/980N, etc.
Epson Stylus Pro Series: 3880/4000/4800/4880/4900/5000/5500, etc.

RICOH:
All Ricoh Printer Models (Excludes MP2014AD)

HP:
HP1022

8. How to Make Your USB Printer Work with LOYALTY-SECU Wi-Fi Bluetooth Print Server Quickly?

***** Windows Computers Printing via LAN, Cloud Printing*****

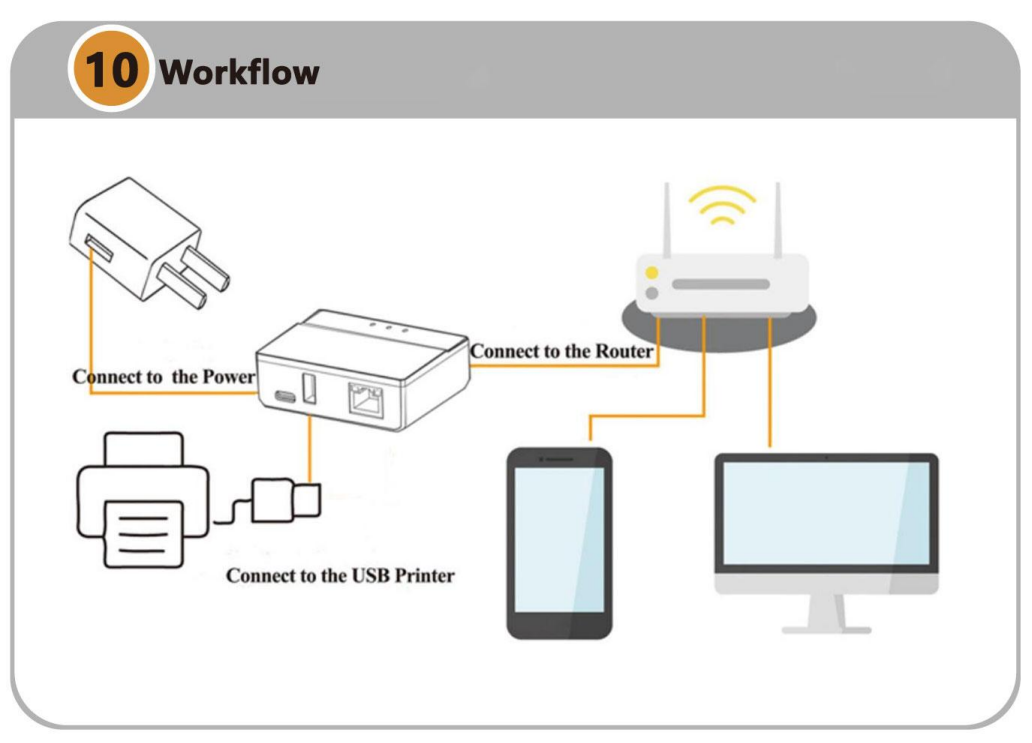

Step 1: Connect the Devices

Connect the LOYALTY-SECU Cloud Print Server to your USB printer via the USB interface. Power on both the print server and the printer.

Step 2: Configure WiFi via Smartphone

1.Download the Print Server Configuration App (Print Assistant) from our website.

2.Install and open the app on your smartphone.

3.Locate your print server device (named by its device code, e.g., SW240834567).

4.Select your WiFi network, enter the password, and connect. The print server will obtain a dynamic IP address automatically.

Step 3: Install PC Software for Cloud & LAN Printing

1.Download PC Print Assistant from our website onto your Windows computer.

2.Install and open the software.

3.Locate the print server device by its device code and enter the PIN code (found on the server label).

4.Log in to the cloud server and bind the USB printer you want to use.

Step 4: Printing via Smartphone

1.Download a third-party & prepaid printing app such as PrinterShare or PrintHand on your smartphone.

2.Follow the app instructions to connect to your USB printer over LAN.

3.Send print jobs wirelessly to your USB printer.

*****Windows Computers Printing via Bluetooth:(No pin code required)*****

Step 1: Connect Devices

Connect the Bluetooth print server to your USB printer using a USB cable.

Step 2: Power On

Turn on both the print server and the USB printer.

(The print server is identified by its device code, starting with “SW” followed by numbers, e.g., SW240834567.)

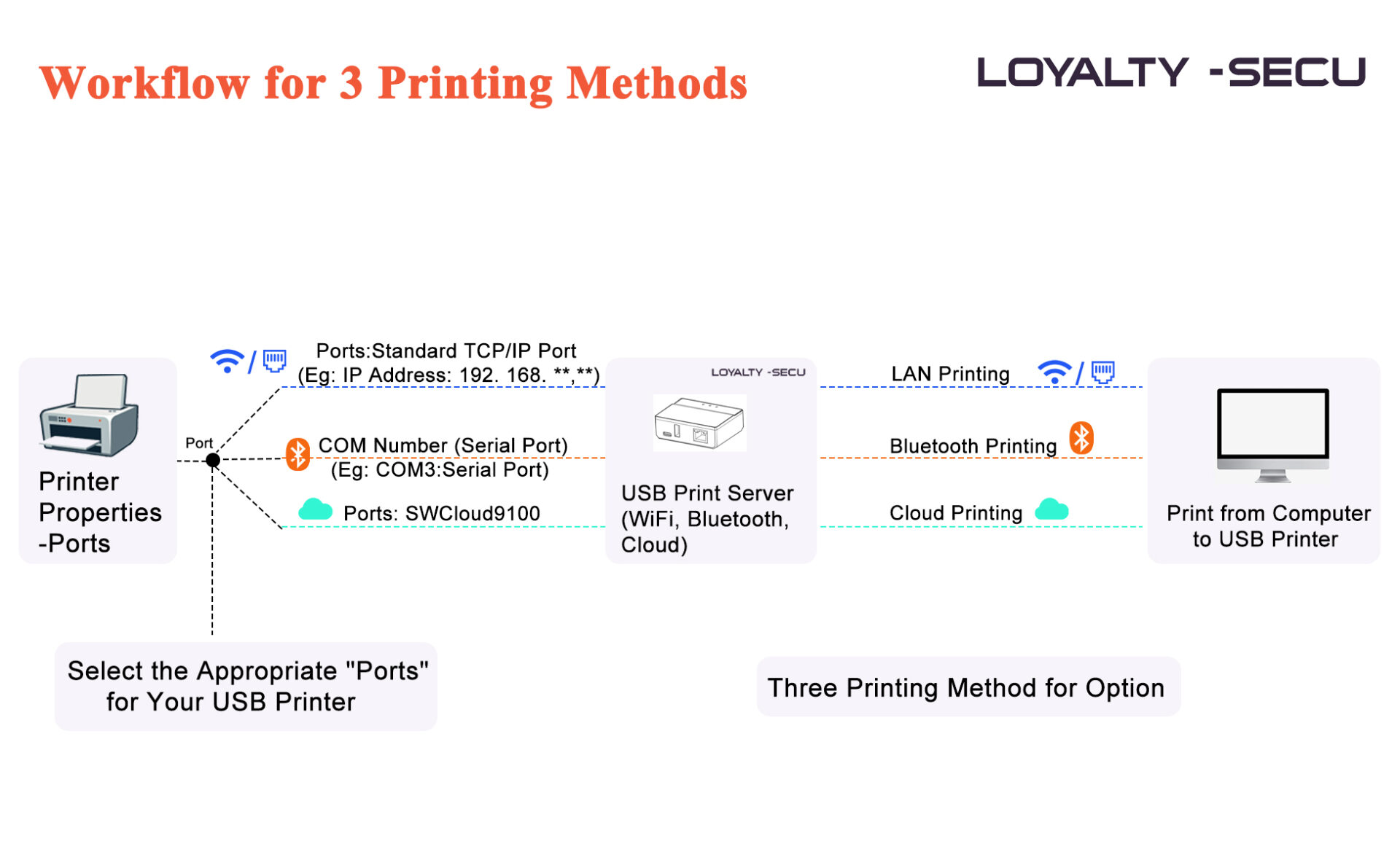

Step 3: Obtain Bluetooth COM Number

Find the Bluetooth networking COM number assigned to the print server.

Step 4: Configure Printer on PC

In your computer’s Printer Properties, select the corresponding COM number for your USB printer.

Step 5: Print via Bluetooth

Send print jobs from your computer to the USB printer over Bluetooth.

Smartphone Printing via Bluetooth

1.Download and install a third-party & prepaid printing app, such as PrinterShare or PrintHand, on your smartphone.

2.Start the Bluetooth connection through the app.

3.Send print jobs wirelessly from your smartphone to the USB printer.

Note: Please refer to our user manual and demo video for detailed instructions.

9. Cloud WiFi Bluetooth Print Server Specification：
