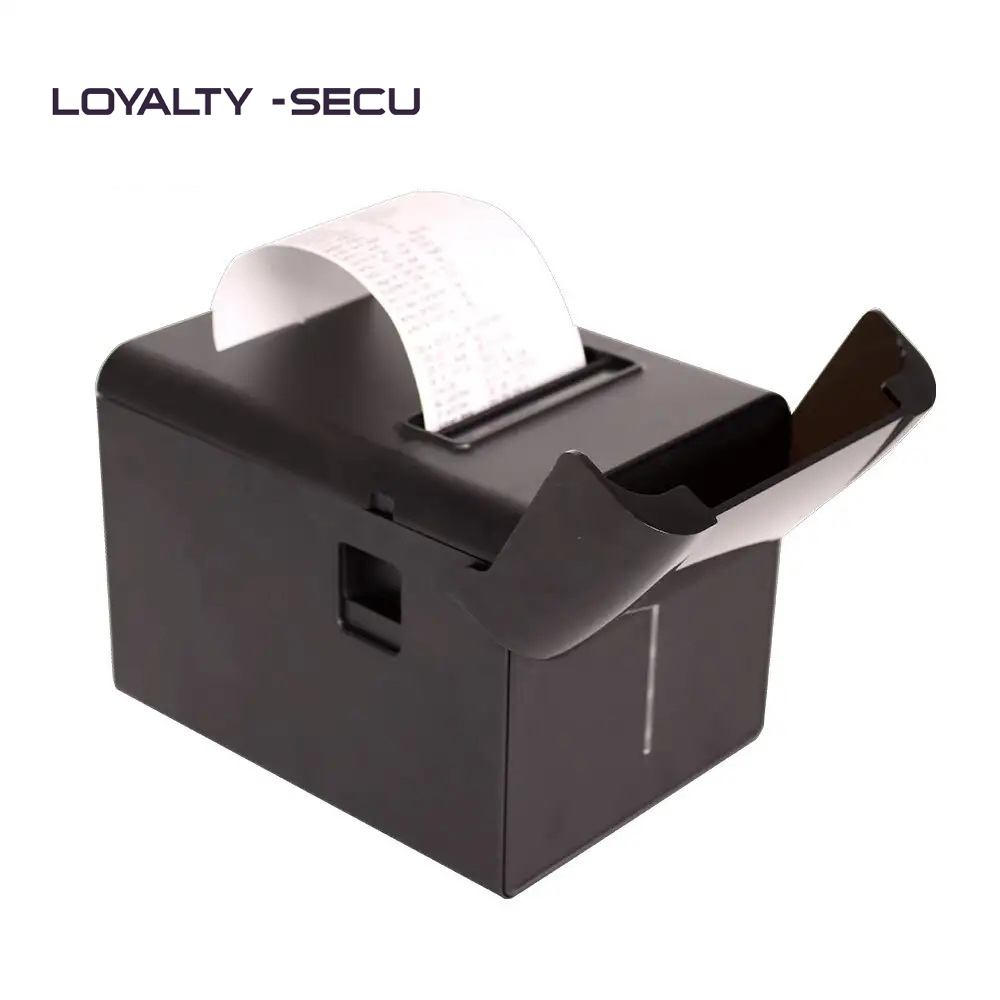

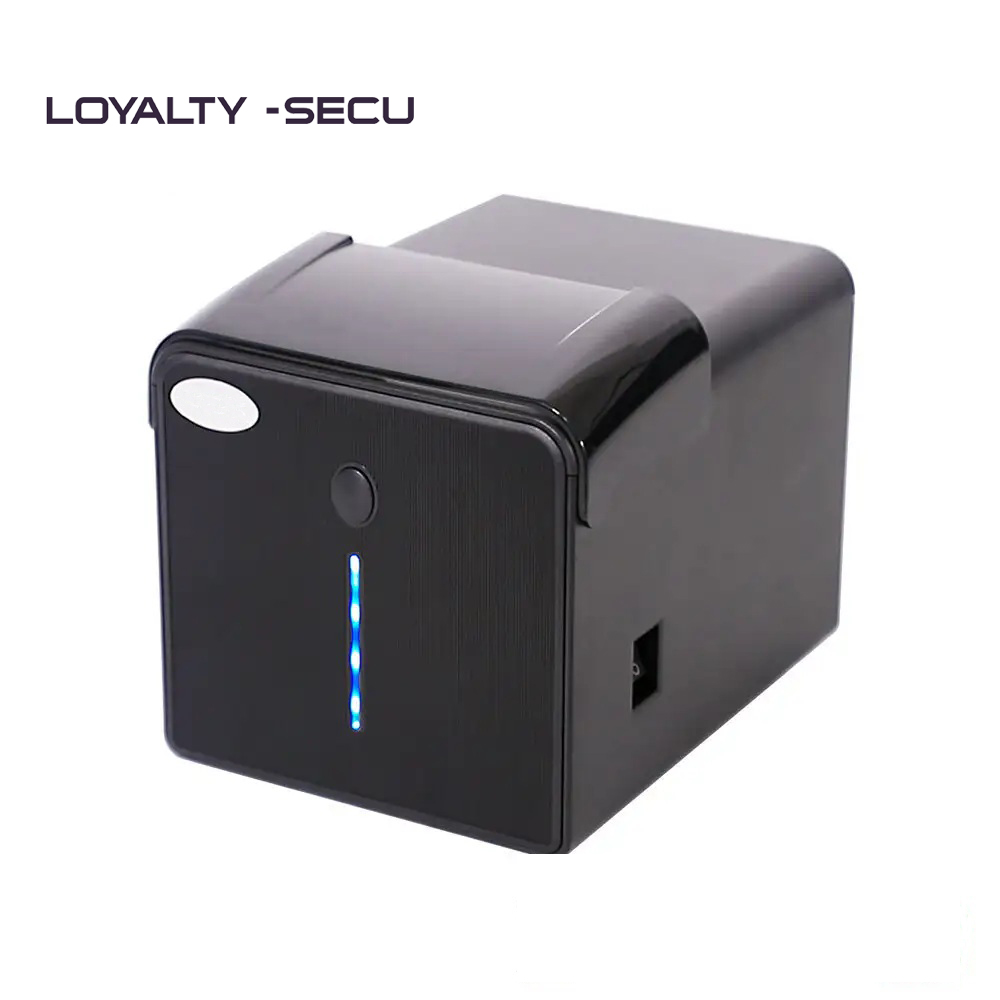

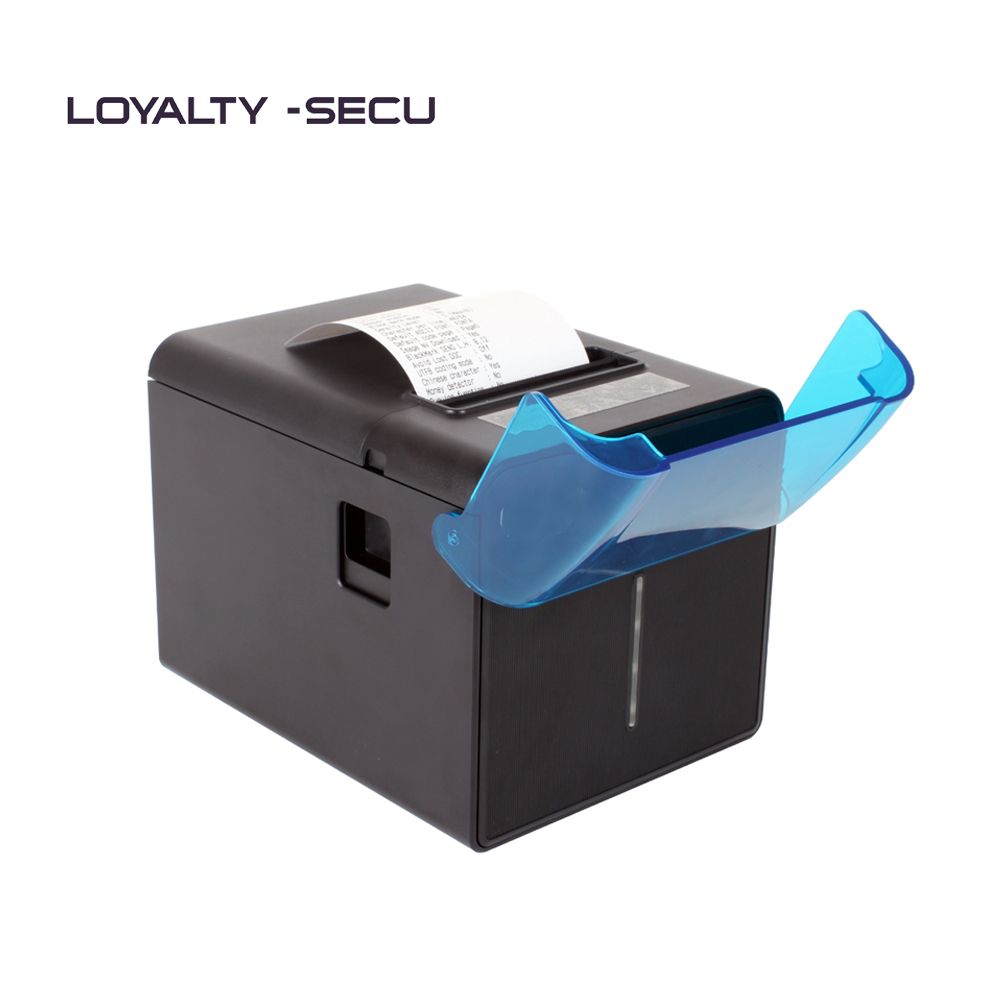

LY-TPW-382 Series | 3-Inch Kitchen Thermal POS Printer
Fast. Durable. Kitchen-Ready.
Product Overview:

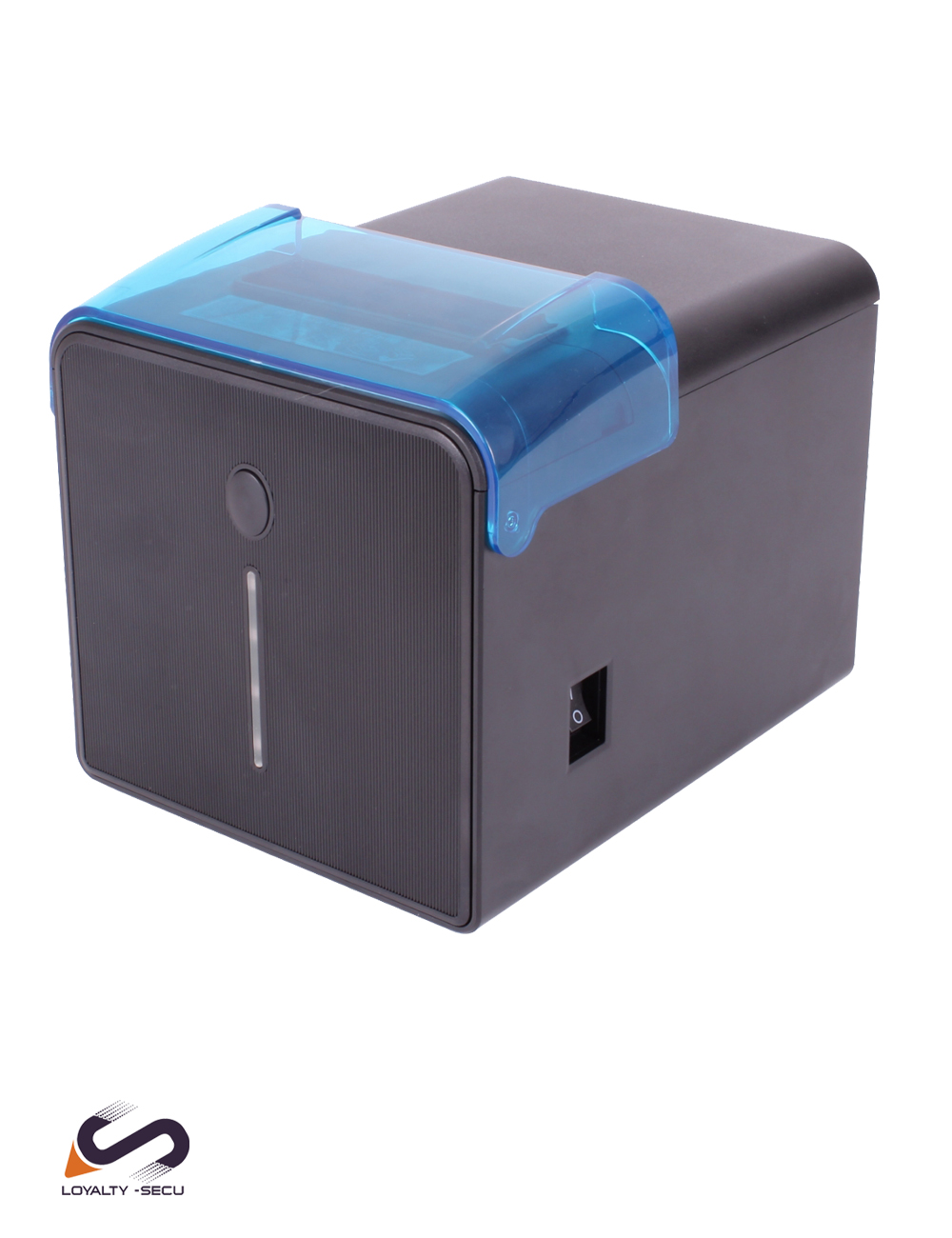

The LY-TPW-382 Series from LOYALTY-SECU is a high-speed 3-inch direct thermal POS printer engineered for harsh kitchen and commercial environments. Featuring an IP54 waterproof rating, modern mesh-design cover, and cockroach-resistant ventilation, it’s built to last in heat, humidity, and oil-laden air.
Equipped with auto cutter, real-time error alerts, and multi-interface support (USB, Ethernet, Wi-Fi, Bluetooth), it prints text, graphics, QR codes, barcodes, and more at blazing speeds—up to 260mm/s. Ideal for food service, retail, and industrial settings.
80mm Kitchen Thermal POS Printer Key Highlights:

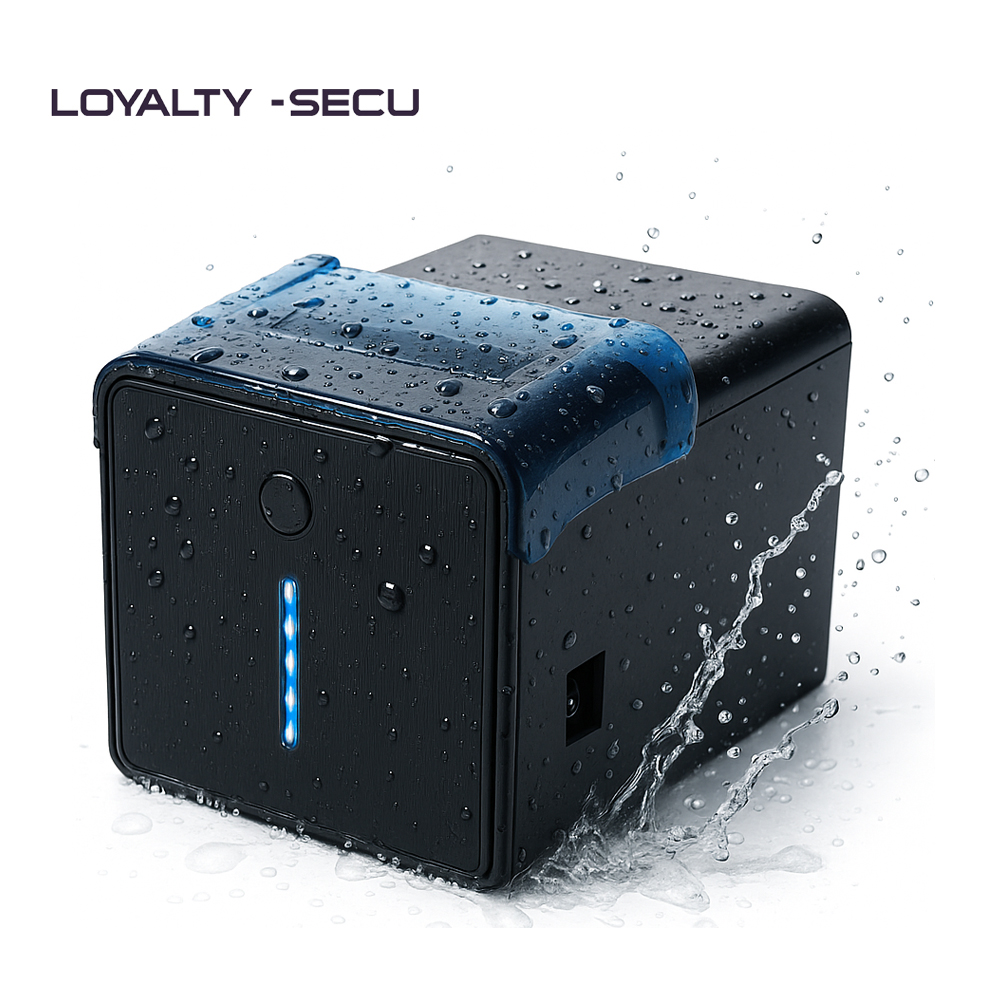

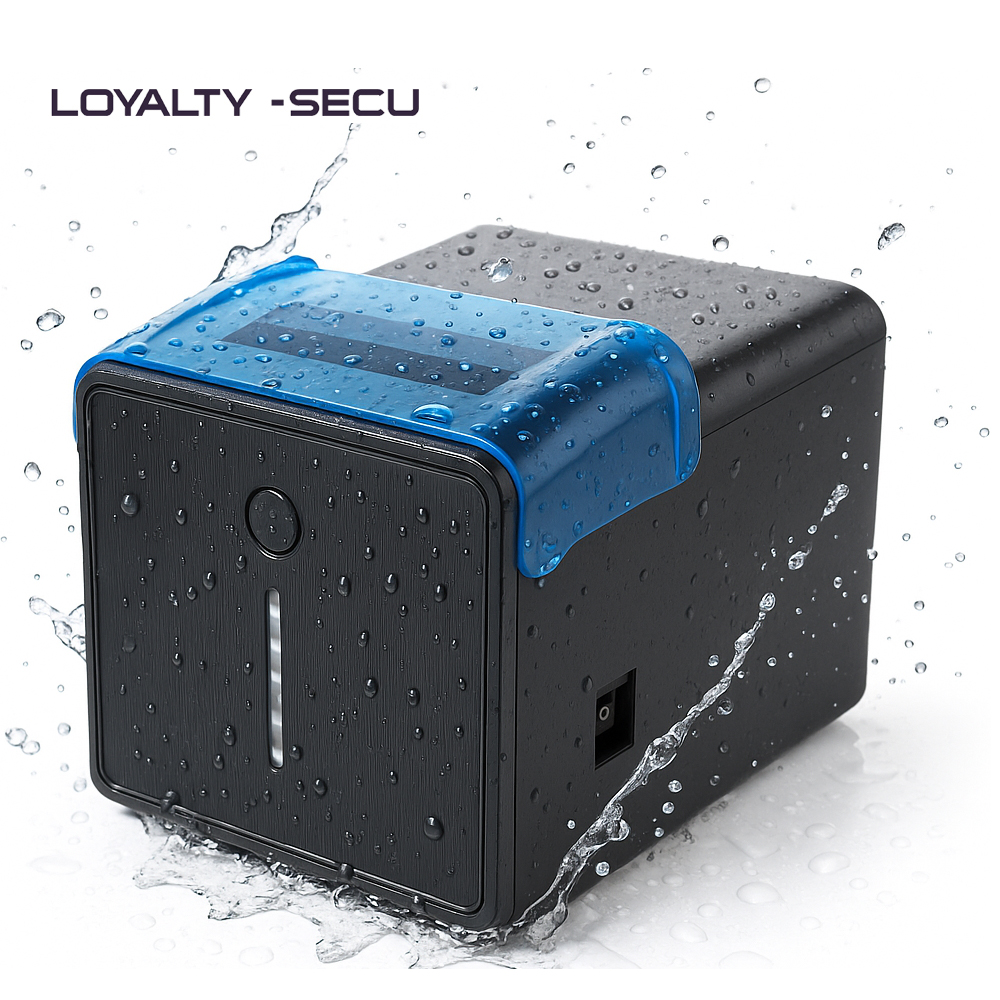

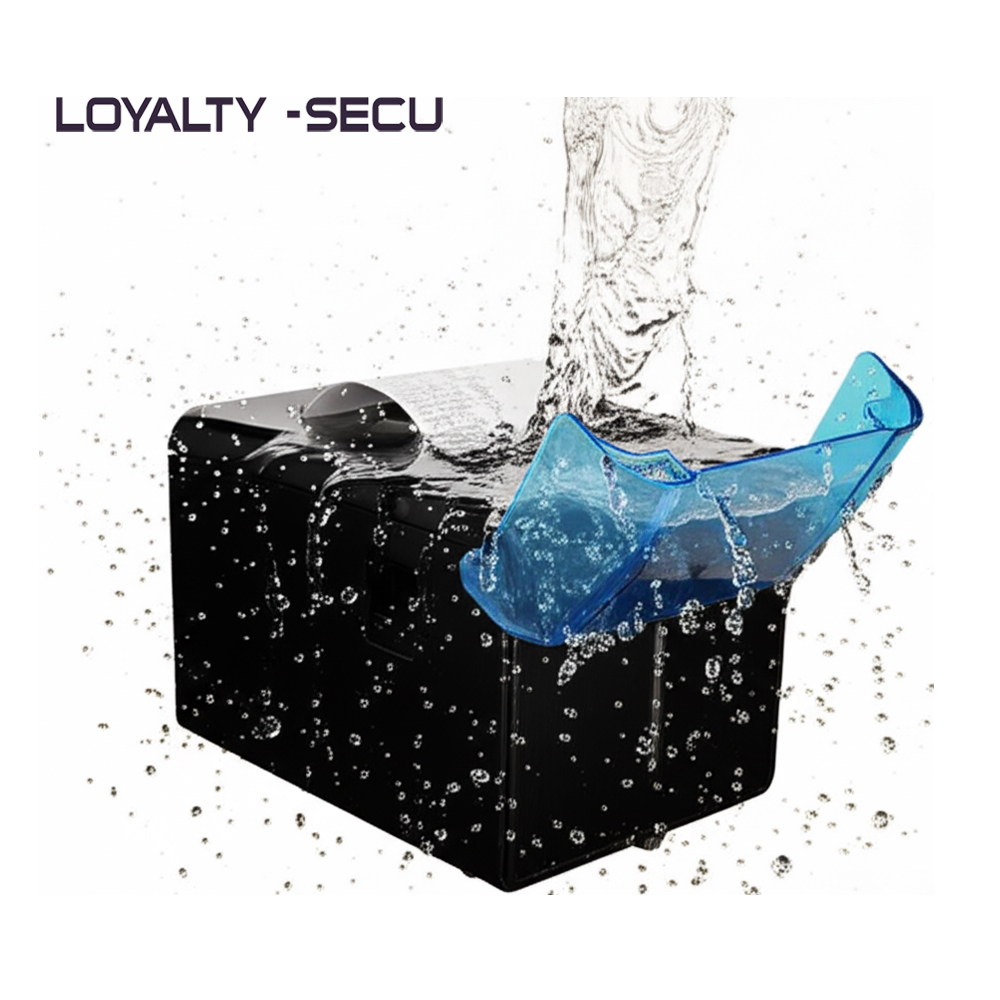

- IP54 Waterproof Protection – With sealed anti-splash design for demanding kitchen environments
- Audio & Visual Error Alerts – Real-time notifications for paper jams, cutter errors, and more
- Fast & Clear Output – Up to 260mm/s, with support for text, barcodes, QR codes, and images
- Smart Networking – IP address can be quickly assigned via gateway or QR code scan
- Cockroach-Resistant Design – Bottom air vents prevent insect intrusion
- Intelligent Monitoring – Supports network status detection & black mark alignment
- Multi-language & Cross-platform Support – Works with Windows, Linux, MacOS, Android, iOS
- Inkless Thermal Printing – No ribbons, no toner, just fast, reliable performance
3 Inch Kitchen Thermal Printer Key Features :
🚀Core Performance
- Print Method: Utilizes direct thermal technology, eliminating the need for ink or ribbons—low maintenance and cost-effective.
- Max Print Width: Supports up to 80mm (default 72mm), compatible with most standard receipts and label formats.
- Resolution: 203dpi (8 dots/mm), delivering sharp and clear print quality for text, barcodes, and images.
- Print Speed:
- Label printing: Up to 230mm/s
- Receipt printing: Up to 260mm/s
- Ensures high efficiency, even during peak usage.
⚙️ Durability & Reliability
- Auto Cutter Life: Rated for up to 1.5 million cuts, ideal for high-volume environments.
- Print Head Life: Up to 150KM of continuous printing, ensuring long-term reliability.
- Memory:
- 2MB Input Buffer
- 4MB NV Flash for stable graphic and logo storage
🌐 Versatile Connectivity

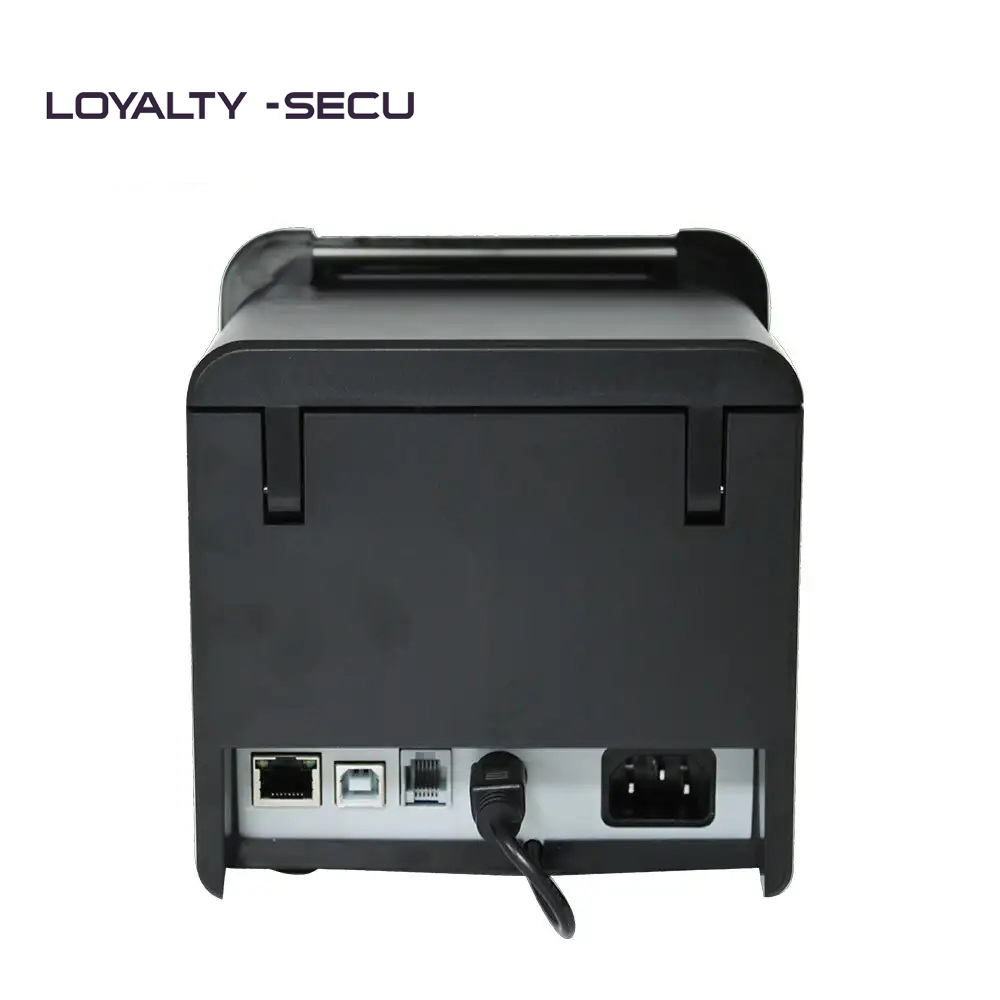

- Multiple interface options: USB, Ethernet, Wi-Fi, Bluetooth (optional), adaptable to various POS and network setups.
- Cross-platform compatibility with Windows, MacOS, Linux, Android, and iOS, enabling seamless integration.
📋 Media Handling
- Supported Media: Accepts both thermal receipt paper and thermal label paper
- Paper Width: Adjustable between 20–82mm, flexible for different formats
- Paper Thickness: Ranges from 0.06mm to 0.19mm
- Roll Diameter: Supports rolls up to 83mm, reducing the need for frequent replacements
🧠 Smart Detection & Alert System
Built-in monitoring functions ensure smooth operation and quick troubleshooting:
- Paper Out Alert
- Cover Open Alert
- Cutter Jam Alert
- Paper Jam Alert
- Black Mark Detection for precise label positioning and alignment
💻 Command Set & Software Compatibility
- Supports industry-standard command sets: ESC/POS, TSPL, CPCL
- Easy to integrate with most POS systems, label design software, and custom applications
🔌 Power Specifications
-
- Input: AC 100–240V (worldwide compatible)
- Output: DC 24V / 2.5A for stable and efficient operation
Waterproof Kitchen Thermal Receipt Printer Datasheet:
| Feature |
Details |
| Model |
LY-TPW-382 Series |
| Print Method |
Direct Thermal |
| Resolution |
203dpi(8dots/mm) |
| Max Print Width |
80mm (Default 72mm) |
| Print Speed |
Up to 230mm/s (label), 260mm/s (receipt) |
| Memory |
Input buffer: 2MB; NV Flash: 4MB |
| Cutter Life |
1.5 million cuts |
| Print Head Life |
150KM |
| Interfaces |
USB, Ethernet, Wi-Fi, Bluetooth (optional) |
| Supported Fonts |
Font A (12x24), Font B (9x17), Chinese (GB18030/BIG5) |
| Barcode Support |
1D (UPC/EAN/CODE128 etc.), 2D (QR Code) |
| Water-proof Grade |
IP 54 |
| Detection |
Paper Out Alert, Cover Open Alert
Cutter Jam Alert, Paper Jam Alert
Black Mark Detection |
| Paper Type |
Thermal receipt paper/thermal label paper |
| Paper Width |
20~82mm |
| Paper Thickness |
0.06~0.19mm |
| Roll Inner Diameter |
25mm~38mm |
| Roll Diameter |
Max 83mm |
| Power Supply |
AC 100–240V (Input); DC 24V/2.5A (Output) |
| OS Compatibility |
Windows, Linux, MacOS, Android, iOS |
| Command Languages |
TSPL, CPCL, ESC/POS |

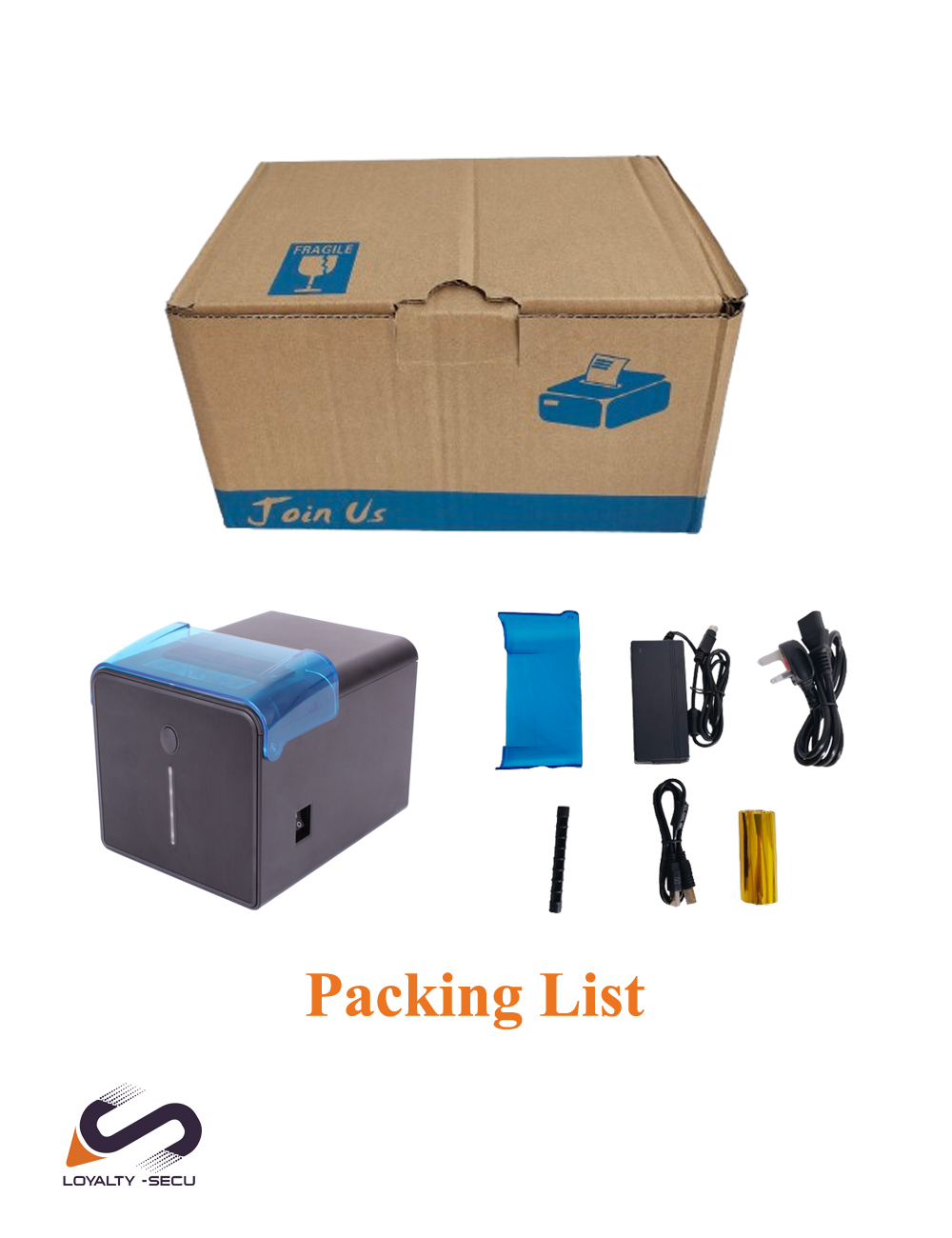

Product & Packaging:

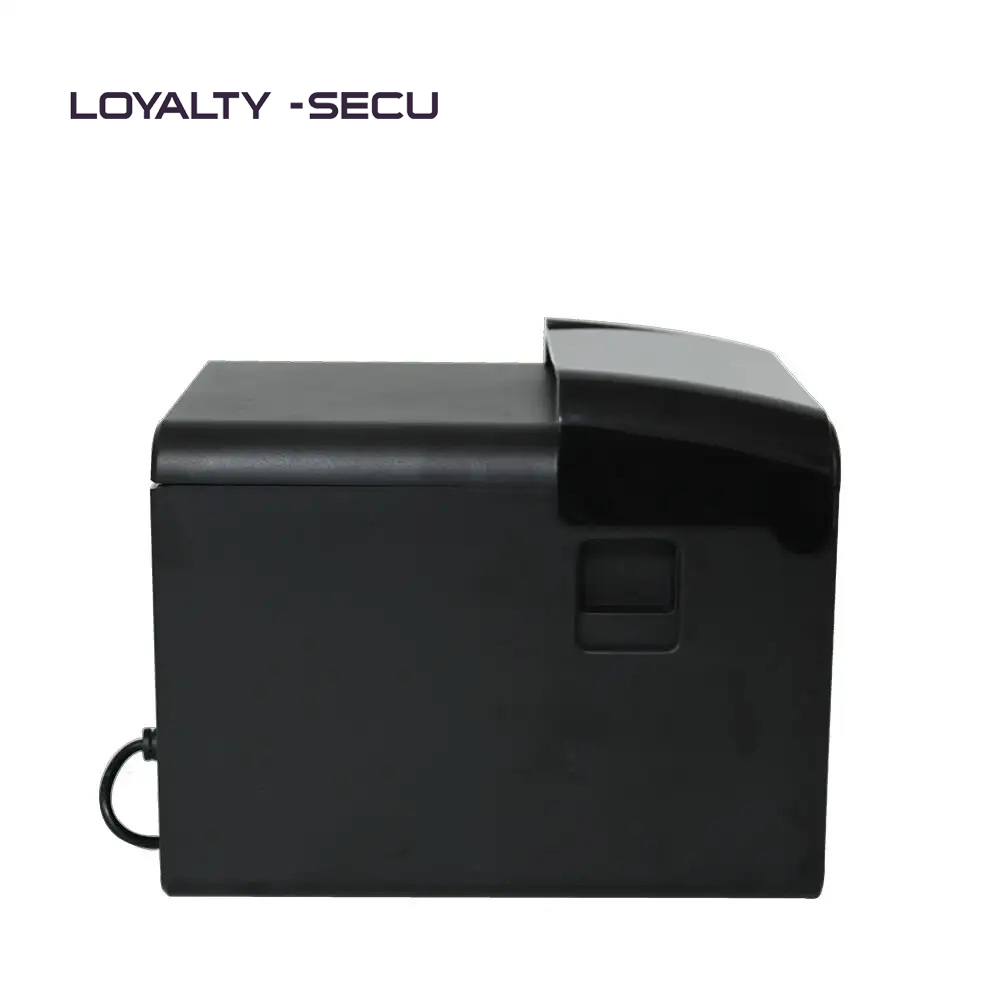

- Printer Size: 193.5*145*135 mm
- Net Weight: 1.8 kg
- Gross Weight: 2.5 kg
- Package Box: 286*164*160 mm
- Carton Size: 615*370*535 mm (12 pcs/CTN)
Applications:
kitchen, Restaurant, Supermarket, Coffee Shop, Home, Hotel, Hospital, Gas Station, Convenience Store etc.
Contact Us:
LOYAITY-SECU offers flexible OEM/ODM options and integration support for system integrators.
Feel free to reach out to us for datasheets, SDKs, or customization inquiries.
