Mini Network USB 2.0 Print Server

Model: LY-MPS-N01

  • Simple and compact design, low power, small footprint, easy to carry
  • Support to print and scan file in format of image,PDF, PPT, Excel, Word
  • Equipped with 1PCS RJ45 LAN port, support Multi-Users sharing an USB printer
  • Standard USB2.0 interface, support high-speed, stable printing
  • Compatible with more than 99% of the brand USB printers on the market
  • Work with the APP, ensure the android smartphone can print the file or images directly.
  • White & gray color is available , accept customization for other color

1-Port Network Print server

SHARE A PRINTER: Easily connects your USB printer to the Network with the LOYALTY-SECU network print server, allows multiple computers and Android smartphones to share 1 USB printer on the LAN network; eliminating the need to place the printer right next to the computer;

HIGH COMPATIBILITY: Compatible with more than 99% of the brand USB printers on the market;

SUPPORT PRINTER TYPE: Inkjet Printers, Label Printer, Barcode Printer, Impact Printer (Dot Matrix Printing), Thermal Label or Receipt Printer, Laser Printer, Multifunction Printer (MFP), and so on;

SUPPORT WORKING SYSTEM: Support Windows 2000/2003/XP/Vista/7, 8.x, 10 and 11, Mac OS, UNIX/Linux and Android devices to share and print simultaneously. Please Pay Attention, IOS System (iPhone, tablet) Is Not Supported.

White & gray color is available, accept the customization for other colors.

LY-MPS-N01 | LOYALTY-SECU USB 2.0 Network Print Server

LY-MPS-N01 Mini USB Network Server offers a standard USB 2.0 interface (compatible with USB1.1) and RJ45 network ports, which can turn the USB printer into a network printer easily.

LY-MPS-N01 is a Mini USB Print Server, a 10/100Mbps Ethernet to USB 2.0 Network LPR Print Server.

After being connected to the local area network (LAN) through the RJ45 network cable, it is an independent network device in LAN, which allows multiple computers & smartphones in the local area network to share a USB printer. It’s replacing the computers which worked as the print server with the high cost, spacy-occupying, high energy consumption, not easy to manage later disadvantages. Compared with traditional computer sharing printers, using LOYALTY-SECU Mini USB Network Printer for printer sharing can greatly save power, reduce costs, and be more environmentally friendly.

It is easy to set up the USB print server with your USB printer via a simple web-based setup or a Windows-based utility wizard. Supports different operating systems, like Windows, MAC.

And any working system can share the printing job via USB printer adapter, like windows, MAC, and Linux working systems. Meanwhile, it supports Android smartphones to send printing jobs to your USB printer via the LOYAL-SECU network print server. And it just needs to install the Third-Party & Prepaid APP of PrinterShare or PrintHand into your android phone directly.

LED Indicator of the Network Print Server

connection-status-instruction-of-USB-print-server

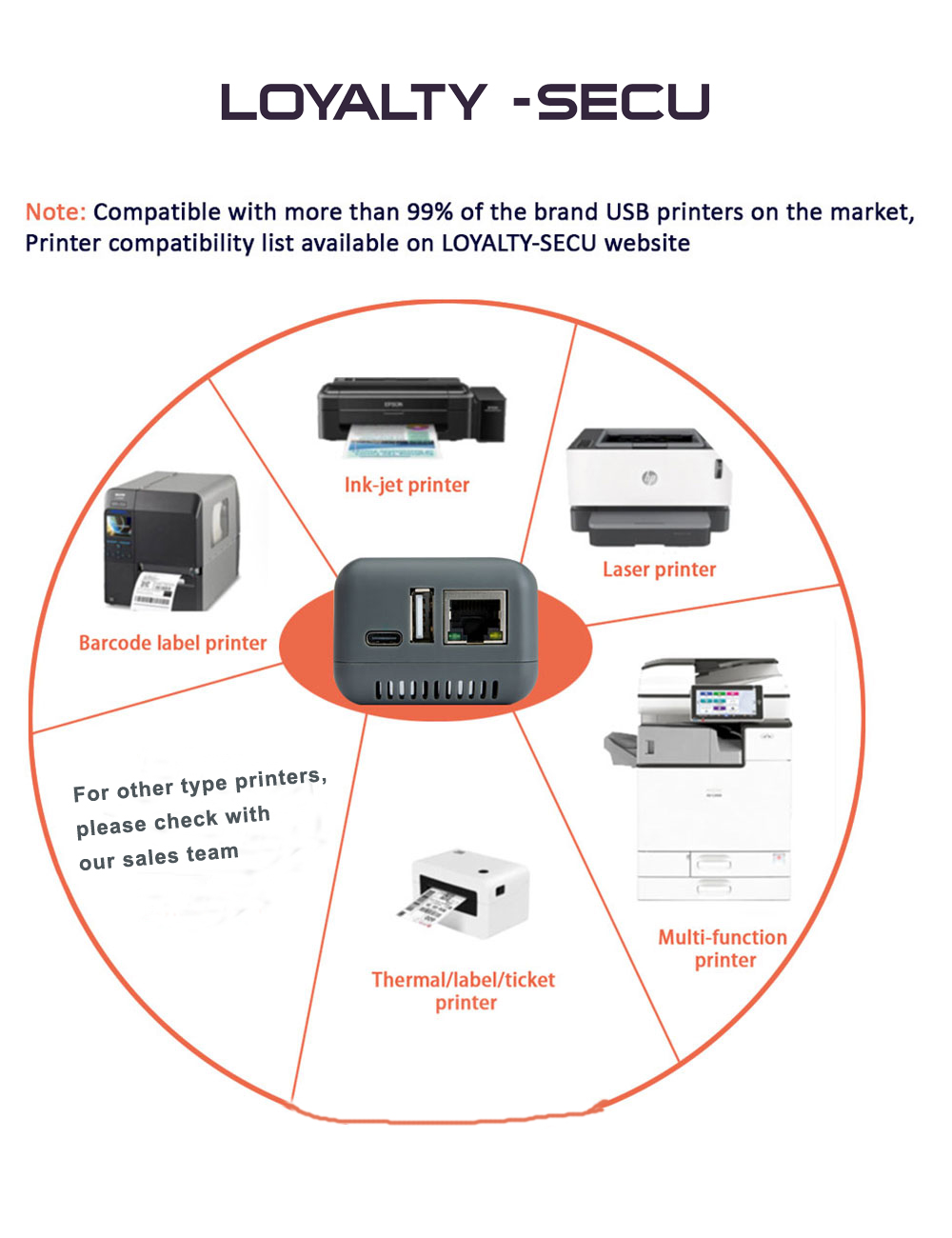

Compatible with more than 99% of the brand USB printers on the market

LOYALTY-SECU Network Print Servers Unsupported USB Printer Models

Canon:

Canon LBP Series Printers:
For Example : 2900/3000/3010/3018/3050/3250/3300/6000/6130/6200/7010 etc.

EPSON:

EPSON R Series Printers:
For Example : Epson Stylus Photo R200/220/330/260/280/300/300M/320/330/340/380/800/R1800/1900/R2000/R2400/R2880/R3000, etc.
Epson Stylus Series Printers:
For Example: 300/400/800/800+/1000/1500, etc.
Epson Stylus Color Series: 880/880i/900/900G/900N/980/980N, etc.
Epson Stylus Pro Series: 3880/4000/4800/4880/4900/5000/5500, etc.

RICOH:

All Ricoh Printer Models (Excludes MP2014AD)

HP:

HP1022

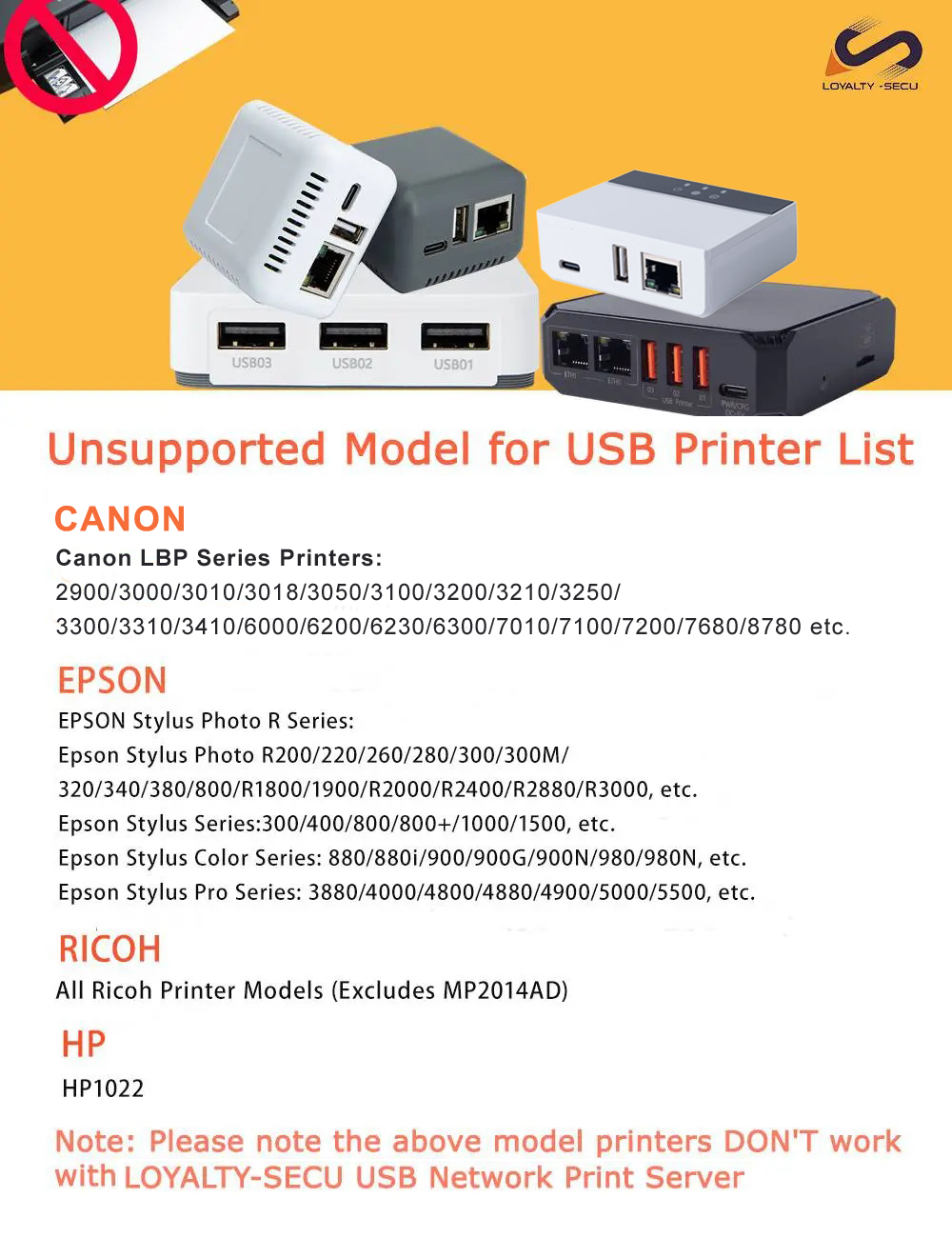

LOYALTY-SECU Print Server Unsupported USB printer models

LOYALTY-SECU Network Print Server With 3 Power Plugs for Option

What's in the Box:

1-Port USB 2.0 Print Server, Power Adapter, USB Cable, Simple User Manual

Product Specification

Model LY-MPS-N01
Product Item Mini USB Print Server
Support Printer Type Standard USB Printer
CPU ARM9
Memory 64MB DDR2
Flash 128MB NANDFLASH
Printer Connection USB 2.0/USB 1.1
Print Server Print & Scan Function Support
Operating System LINUX3.4
USB Print Interface USB2.0 Host
USB Config Interface USB2.0 Device
Network Interface 10/100Mbps RJ45
TF Card Storage Available for Customization (Max support 256GB)
Bluetooth Function Classic+ BLE4.0,can be customized
WiFi Function 802.11BGN,can be customized
Network Protocols IPX, TCP/IP, NETBUEI, APPLETALK, LPR, SMB (Over TCP/IP)
Working System Windows 2000/2003/XP/Vista/7, 8.x and 10, Mac OS, UNIX/Linux and Android or others operating system
Power Supply 5V/1A
Product Weight 25g
Product Size(L*W*H) 53*53*40mm
Packing Box Size 13.5*13.5*5CM
Packing Weight 160g
Packing Items 1PCS * Print Server,1PCS * Power Adapter,1PCS * User
Guide
Product Color White/Gray, accept customization for other color
Operating Environment Temp: -10°C~50°C, Humidity: 20%~85%
Charging Environment Temp: 5°C~40°C, Humidity: 20%~85%
Storage Environment Temp: -20°C~70°C, Humidity: 5%~95%

Resources and Downloads

Datasheets:

Mini USB Network Print Server LY-MPS-N01 Datasheet
