LOYALTY-SECU WiFi Bluetooth Cloud Print Server for USB Printers | Supports Remote Printing | Dual-Band WiFi 2.4/5GHz | Bluetooth

1. Product Overview

The LOYALTY-SECU WiFi Bluetooth Cloud Print Server is an industrial-grade print server that transforms any USB printer into a wireless printer, supporting both WiFi and Bluetooth connections. It allows remote printing via cloud services. Ideal for home, office, business, and educational environments.

2. Compatible Devices and Use Cases

This cloud USB print server adapter provides an ideal printing solution, especially suited for home or small office environments, as well as government and educational institutions that need to collaborate across different LAN networks and rely on efficient, shared cloud printing capabilities.

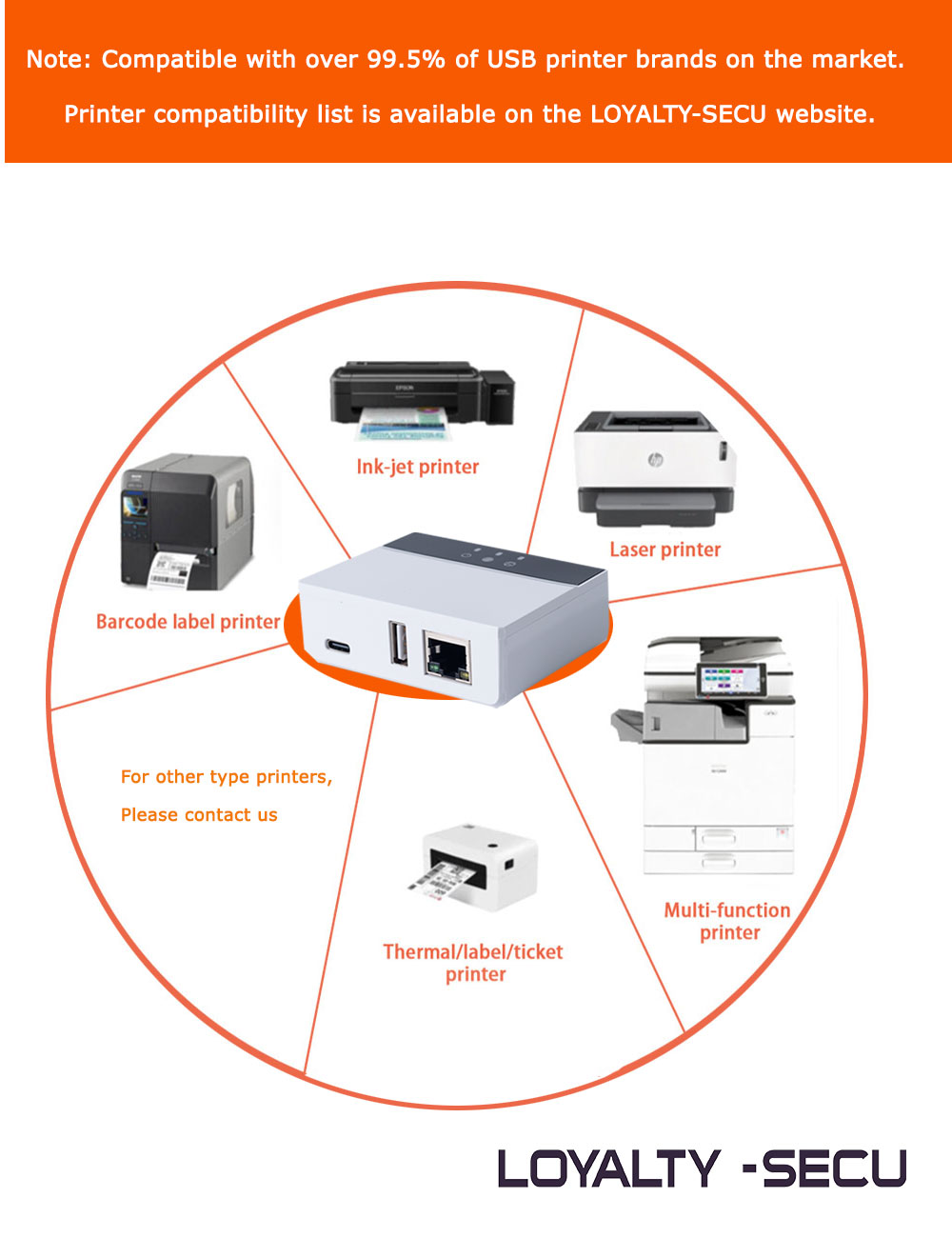

• Compatible Devices: Supports inkjet printers, laser printers, label printers, thermal printers, dot matrix printers, and multifunction printers.
• Use Cases: Home offices, schools, logistics centers, e-commerce, enterprises, and more.

LOYALTY-SECU Print Servers Unsupported USB Printer Models

Canon:
Canon LBP Series Printers:
For Example : 2900/3000/3010/3018/3050/3250/3300/6000/6130/6200/7010 etc.

EPSON:
EPSON R Series Printers:
For Example : Epson Stylus Photo R200/220/330/260/280/300/300M/320/330/340/380/800/R1800/1900/R2000/R2400/R2880/R3000, etc.
Epson Stylus Series Printers:
For Example: 300/400/800/800+/1000/1500, etc.
Epson Stylus Color Series: 880/880i/900/900G/900N/980/980N, etc.
Epson Stylus Pro Series: 3880/4000/4800/4880/4900/5000/5500, etc.

RICOH:
All Ricoh Printer Models (Excludes MP2014AD)

HP:
HP1022

3. Product Package Items:

• 1PCS * USB Print Server
• 1PCS * 5V/1A Power Adapter
• 1PCS * User Manual

4. VERY IMPORTANT

• LOYALTY-SECU Print Server Products are best suited for users with some familiarity with network settings.
• LOYALTY-SECU offers remote technical support via TeamViewer or AnyDesk for quick and easy configuration.
• Before using the print function, please ensure you download the Print Server Configuration App and User Manual from our official site.
• Requirements:
  • A Windows OS computer is needed for cloud or Bluetooth printing.
  • Windows, MAC, and LINUX OS computers are compatible for LAN printing.
  • Android and Harmony smartphones support LAN or Bluetooth printing.
  • Note for Smartphone Printing: To use LAN or Bluetooth printing on your Android or Harmony smartphone, you will need to install a third-party, prepaid app such as "PrinterShare" or "PrintHand."

5. How to Make Your USB Printer Work with LOYALTY-SECU Wi-Fi Bluetooth Print Server Quickly?

5.1 Install APP“Print Assistant” for Network Configuration on Smartphone & Install CMS“PC Print Assistant”on Windows Computer for Cloud Printing

A. Download the  APP“Print Assistant”  from Google Play or official web:https://loyalty-secutech.com/wb07a/

B. Download the CMS“PC Print Assistant”from official web: https://loyalty-secutech.com/wb07c/

  5.2 Config Network for Print Server in Smartphone via App “ Print Assistant”

• Install APP“Print Assistant” for Network Configuration on Smartphone
• Power On the Print Server: Use LOYALTY-SECU power adapter to turn on the print server.
• Enable Bluetooth: Turn on Bluetooth on your smartphone, then open the APP“Print Assistant”.
• Connect to the Device: In the app, select the device (e.g., SW123456789) and tap “Connect.”
• Config WiFi: Choose your WiFi network ( 2.4GHz or 5GHz), enter the password, and the device will automatically obtain an IP address.
• Connection Confirmation: Once connected, the app will show “Connected” and display the assigned IP address for print server.

5.3 Printing from Windows Computers For Cloud Printing ( Supports Windows 2000/2003/XP/Vista/7/8/10/11)

• Install CMS“PC Print Assistant”for Cloud Printing on Windows Computer
• Power on the print server and the USB printer.
• Connect the print server to the printer using a USB cable.
• Ensure that the print server is connected to the internet.
• Open the “PC Print Assistant”.

Add A Print Server in “PC Print Assistant”

• Click the “Add New” button to add the print server.
• Input the Device Code (located on the device label).
• Input the Pin Code (located on the device label).
• Click the “OK” button.
• The print server will be successfully listed in the device list.

Bind the Printer to PC (Windows) for Cloud Printing

• Click the “Bind Printer” button.
• Select the printer driver for the printer.
• Click the “OK” button.
• Now, you can print via the LAN network or cloud network.

5.4 Printing from Windows Computers & Android smartphone via Bluetooth (No PIN Code Required):

• Connect the printer to the USB port of the print server.
• Turn on Bluetooth on your computer/Smartphone and pair it with the Bluetooth print server (the Device Name will be the Device Code, e.g., SW123456789; no PIN code is required).
• Obtain the Bluetooth networking COM number of the print server and assign it to the USB printer.

5.5 Video Guide & User Manual

1. Video Guide download Link:  https://loyalty-secutech.com/wb07v/
2. User manual download Link: https://loyalty-secutech.com/wb07gt/

Warm Reminder: Please refer to our user manual and demo video for detailed configuration instructions.

6. Specification：
