Model: LY-TRP-486 Series
Multi-Interface Smart Thermal Printer | All-Scenario Cloud Printing Solution·Stable & High-Speed·Auto Paper Cutter·MQTT Compatible.
The LY-TRP-486 Series, designed by LOYALTY-SECU, is a Smart Thermal Cloud Printer built for high-efficiency business environments. It supports a variety of communication methods including WiFi, 4G, Bluetooth, and Ethernet, making it seamlessly adaptable to diverse application scenarios such as food delivery, self-service kiosks, and retail stores.
Equipped with a high-quality ROHM print head imported from Japan, it delivers high-speed, stable printing with an auto cutter for enhanced efficiency. The built-in speaker supports real-time voice order notifications, while integration with a robust cloud printing platform and standard API enables easy remote printing and system integration—helping you streamline workflows and boost operational efficiency.
Smart Printer for Food & Retail | Cloud Printing · Auto Order Receiving · Voice Broadcast · Ultra-Fast & Multi-Platform Compatible.
This thermal cloud printer represents the perfect balance of technology and performance, setting a new standard for smart office solutions. Experience seamless efficiency and take your business to the next level!
3 Inch 80mm Thermal Cloud WiFi Printer Main Features:
🔹 All-in-One Assistant for Multiple Scenarios
This is more than just a printer — it’s your smart business partner. Seamlessly integrates with multiple ordering platforms to simplify order management and boost efficiency. Built-in voice notifications announce new orders in real time, so you don’t need to watch the screen. No PC or smartphone required — supports automatic order receiving and printing for a smoother, more intelligent workflow.
🔹 Multiple Connection Options for Any Environment
Supports USB, Bluetooth, Wi-Fi, Ethernet, and 4G — perfect for complex and changing work environments. Dual-band Wi-Fi offers enhanced stability and flexibility for reliable performance anytime, anywhere.
🔹 High-Performance Output with Consistent Quality
Equipped with a premium ROHM print head from Japan, it prints at speeds up to 200mm/s with smooth, jam-free performance. The durable auto cutter supports up to 1 million cuts, automatically trimming receipts to save time and labor.
High-Quality Printing: Print head lifespan up to 150 km, ensuring consistent and clear output
Auto Cutter: Long-lasting, clean cuts every time — hands-free and efficient
🔹 Refined Details with Practical Design
HD Output: Supports a variety of printing needs such as receipts and business logo printing.
Large Paper Compartment: Easy paper loading with time-saving design
User-Friendly Operation: Intuitive buttons and layout for effortless use,features network status indicators
Streamlined Aesthetics: Minimalist design with a professional finish

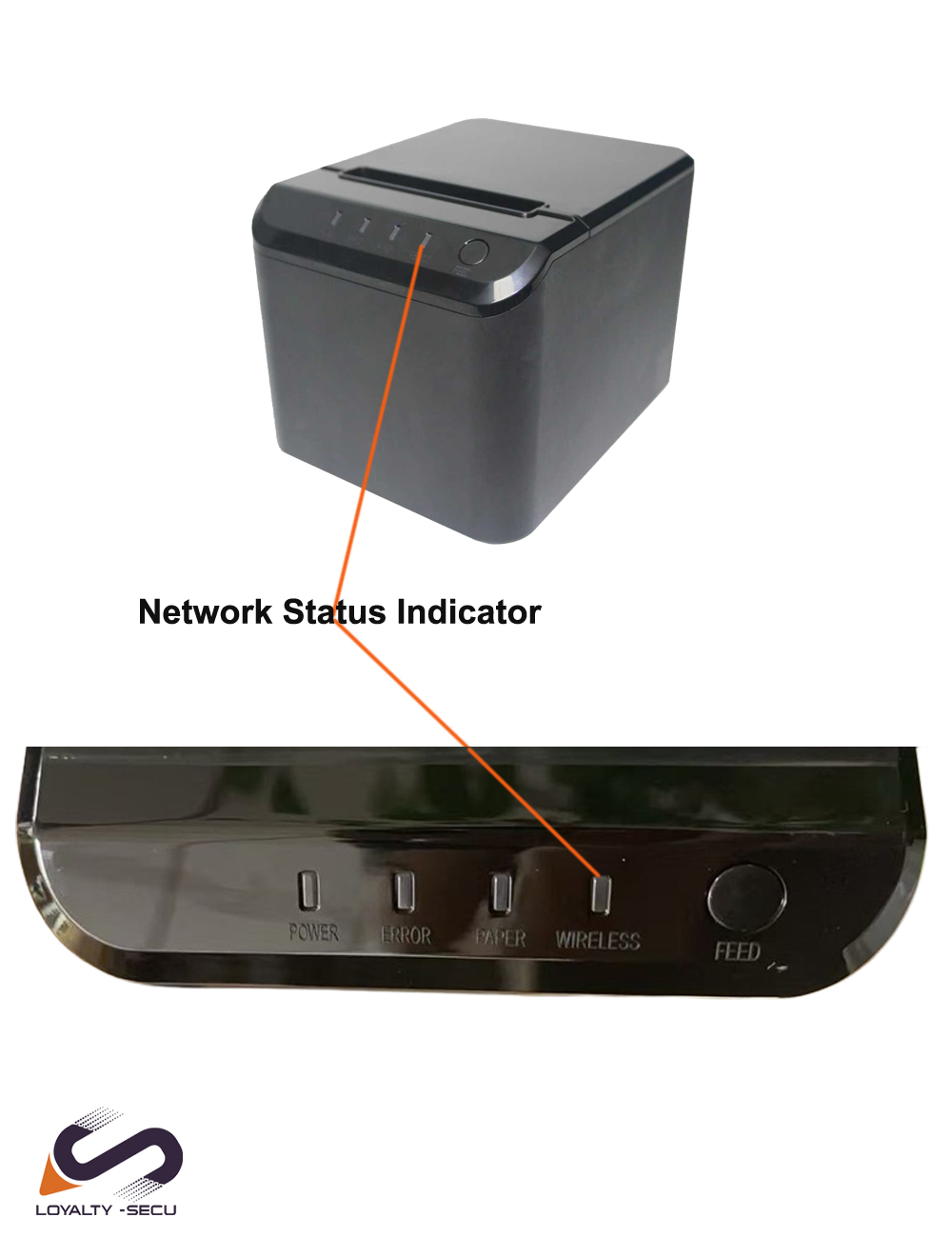

Smart Design: Network status indicator and wall-mount support for flexible installation
🔹 Developer-Friendly & Easy to Integrate
Offers rich standard API support, fully compatible with AWS MQTT, self-hosted MQTT, and other mainstream protocols — enabling smooth system integration and secondary development. Compatible with Windows, XP, Linux, and most POS systems, making it ideal for retail, F&B, and self-service applications.
🔹 Widely Applicable Across Industries
This thermal printer excels in diverse sectors, including restaurants, retail supermarkets, warehouses, hotels, jewelry stores, entertainment venues, logistics, clothing stores, pharmacies, ticketing, and branding applications.
| Model | LY-TRP-486 Series | ||
| Printing | Print speed | 200 mm/s | |
| Resolution | 203 DPI (576dots/line ) | ||
| Print paper width | 80mm/58mm (optional with stopper) | ||
| Effective print width | 72mm | ||
| Paper stopper (option) | 48mm/52mm/56mm/64mm/68mm/76mm/80mm | ||
| Print command | Compatible with ESC/POS commands | ||
| Memory | Input buffer | 256kbyte | |
| NV Flash | 256kbytes | ||
| Fonts | Font A | 12x24 | |
| Font B | 9x17 | ||
| Chinese | GB18030, BIG5 24x24dots | ||
| Japanese/Korea | Support | ||
| User-Define | Support | ||
| Barcode | 1D | UPC-A/UPC E/JAN13(EAN13)/JAN8(EAN8)
/CODE39/ITF/CODABAR/CODE93/CODE128 |
|
| 2D | QR CODE | ||
| Paper Output Direction | Top paper output | ||
| Auto Cutter | Supports (with automatic receipt cutter rebound) | ||

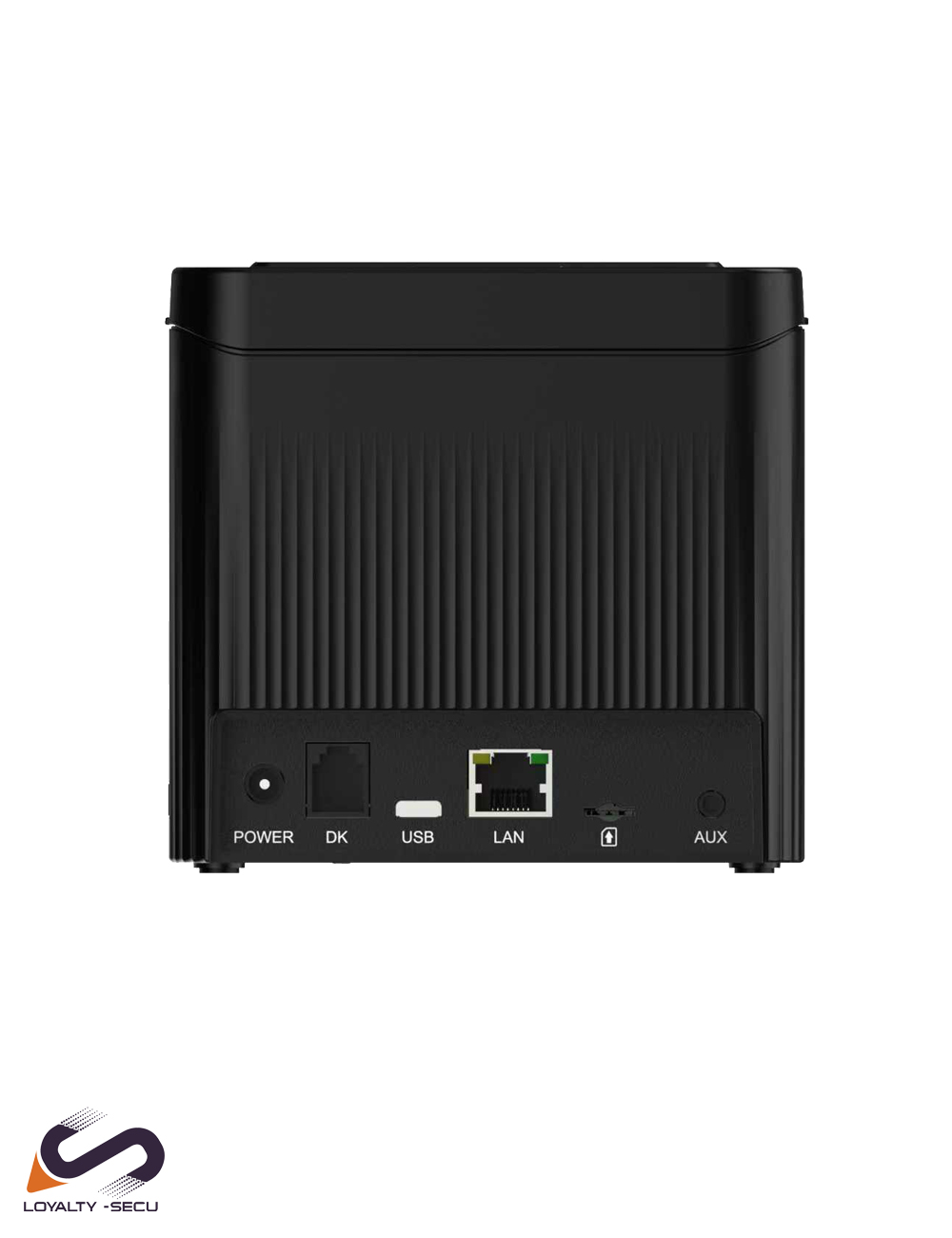

| Communication Interface | USB+4G
USB+ WiFi +Ethernet +BT or USB+WiFi+Ethernet+BT+4G |
||
| Detection | Sensor | Out of paper alert, cover open alert, cutter jam alert, paper jam alert, and black mark detection | |
| Power Supply | Input | AC 100V-240V 50/60HZ | |
| Output | DC 24V/2.5A | ||
| Paper Info | Paper type | Thermal Receipt Paper | |
| Paper width(option) | 48mm/52mm/56mm/64mm/68mm/76mm/80mm | ||
| Paper thickness | 0.06~0.08mm | ||
| Roll diameter | Max. Ø 83 mm | ||
| Paper load | Easy paper loading | ||
| Paper Cut | Manual tear & Auto-cutter | ||
| Physical Characteristics | Working condition | 0°C~45°C, 10%~80%RH | |
| Storage condition | -10°C-60°C,10%~90%RH | ||
| Dimensions | 165*128*115*mm(L*W*H) | ||
| Net weight | 0.85kg | ||
| Gross weight | 1.6kg | ||
| Reliability | Print head lifespan | 1 million kilometers, Japanese ROHM print head | |
| Cutter lifespan | 1 million cuts | ||
| Packing Info | Accessories | USB Cable, Power Adapter, Paper Roller, User Manual, Paper roll stopper (for option) | |
| Individual box | Dimension 24.5*16.5*15cm (L*W*H) | 1 Unit/box | |
| Carton box | Dimension 61.5*37*53.5cm (L*W*H) | 12 Units/carton | |
| OS | Emulation | ESC/POS | |
| Driver | Windows XP /Vista/ Win7/Win8 /Win10/Win 2000/Win CE/OPOS/JPOS | ||
| SDK | Android, IOS | ||
